Titanium and Titanium Alloy Wire

Standards	Grade	Specifications(mm)
ASTMB863 AWS A5.16 ISO 5832-2 ISO 5832-3	GR1, GR2, GR3, GR4 GR5(Ti-6l-4V) GR6(Ti-5Al-2.5Sn) GR7(Ti-0.25Pd） GR9（Ti-3Al-2.5V） GR12（Ti-0.3Mo-0.8Ni） ERTi-1, ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5 ERTi-7 ERTi-9 ERTi-10 Ti15333(Ti-15V-3Al-3Cr-3Sn)	Diameter 0.1-6.0mm Surface polished/pickled
Remark:Other grades are available on request

1.Standard：ASTM B863,AWS A5.16

2.AWS A5.16 Titanium wire Chemical Component

AWS Classification	UNS Numbere	Weight Percent,b,c,d
AWS Classification	UNS Numbere	C	O	N	H	Fe	Al	V	Pd	Ru	Ni	Other Elements	Amount
ERTi-1	R50100	0.03	0.03-0.10	0.012	0.005	_	_	_	_	_	_
ERTi-2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	_	_	_	_	_
ERTi-3	R50125	0.03	0.13-0.20	0.02	0.008	0.16	_	_	_	_	_
ERTi-4	R50130	0.03	0.18-0.32	0.025	0.008	0.25	_	_	_	_	_
ERTi-5	R56402	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.75	3.5-4.5	_	_	_
ERTi-7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	_	_	0.12-0.25	_	_
ERTi-9f	R56321	0.03	0.06-0.12	0.012	0.005	0.20	2.5-3.5	2.0-3.0	_	_	_
ERTi-11	R52251	0.03	0.03-0.10	0.012	0.005	0.08	_	_	0.12-0.025	_	_
ERTi-12	R53401	0.03	0.08-0.16	0.015	0.008	0.15	_	_	_	_	0.6-0.9	Mo	0.2-0.4
ERTi-13	R53423	0.03	0.03-0.10	0.012	0.005	0.08	_	_	_	0.04-0.06	0.4-0.6
ERTi-14	R53424	0.03	0.08-0.16	0.015	0.008	0.12	_	_	_	0.04-0.06	0.4-0.6
ERTi-15A	R53416	0.03	0.13-0.20	0.02	0.008	0.16	_	_	_	0.04-0.06	0.4-0.6
ERTi-16	R52403	0.03	0.08-0.16	0.015	0.008	0.12	_	_	0.04-0.08	_	_
ERTi-17	R52253	0.03	0.03-0.10	0.012	0.005	0.08	_	_	0.04-0.08	_	_
ERTi-18	R56326	0.03	0.06-0.12	0.012	0.005	0.20	2.5-3.5	2.0-3.0	0.04-0.08	_	_
ERTi-19	R58641	0.03	0.06-0.10	0.015	0.015	0.20	3.0-4.0	7.5-8.5	_	_	_	Mo	3.5-4.5
												Cr	5.5-6.5
												Zr	3.5-4.5
ERTi-20	R58646	0.03	0.06-0.10	0.015	0.015	0.20	3.0-4.0	7.5-8.5	0.04-0.08	_	_	Mo	3.5-4.5
												Cr	5.5-6.5
												Zr	3.5-4.5
ERTi-21	R58211	0.03	0.10-0.15	0.012	0.005	0.20-0.40	2.5-3.5	_	_	_	_	Mo	14.0-16.0
												Nb	2.2-3.2
												Si	0.15-0.25
ERTi-23	R56408	0.03	0.03-0.11	0.012	0.005	0.20	5.5-6.5	3.5-4.5	_	_	_

3.AWS A5.16 Titanium Wire Mechanical Property

AWS Classification	UST(min.) Ksi[MPa]	YS(min.) Ksi[MPa]	Nominal Composition
ERTi-1	35[240]	20[138]	Ti(unalloyed)
ERTi-2	50[345]	40[275]	Ti(unalloyed)
ERTi-3	65[450]	55[380]	Ti(unalloyed)
ERTi-4	80[550]	70[483]	Ti(unalloyed)
ERTi-5	130[895]	120[828]	Ti6Al-4V
ERTi-7	50[345]	40[275]	Ti0.15Pd
ERTi-9	90[620]	70[483]	Ti3Al-2.5V
ERTi-11	35[240]	20[138]	Ti0.15Pd
ERTi-12	70[483]	50[345]	Ti0.8Ni-0.3Mo
ERTi-13	40[275]	25[170]	Ti0.5Ni-0.05Ru
ERTi-14	60[410]	40[275]	Ti0.5Ni-0.05Ru
ERTi-15A	70[483]	55[380]	Ti0.5Ni-0.05Ru
ERTi-16	50[345]	40[275]	Ti0.15Pd
ERTi-17	35[240]	20[138]	Ti0.15Pd
ERTi-18	90[620]	70[483]	Ti3Al-2.5VELI-0.05Pd
ERTi-19	115[793]	110[759]	Ti3Al-8V-6Cr-4Zr-4Mo
ERTi-20	115[793]	110[759]	Ti3Al-8V-6Cr-4Zr-4Mo-0.05Pd
ERTi-21	115[793]	110[759]	Ti3Al-15Mo-2.5Nb-0.2Si
ERTi-23	120[828]	110[759]	Ti6Al-4VELI

4.AWS A5.16 Titanium wire Standard Sizes and Length

Table 2 Standard Sizes and Lengtha
Standard Package Forms	Diameter			Tolerances
Standard Package Forms	in	Decimal in^b	mm	in	mm

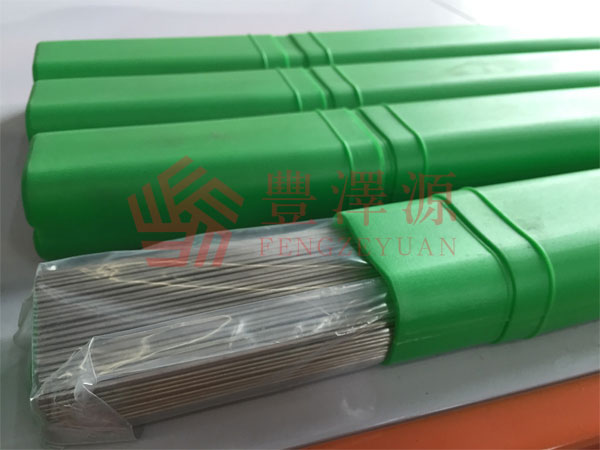

Straight Lengths^c Coils without Support Coils with Support	1/16	0.062	1.6	±0.002	＋0.01,－0.04
		0.079	2.0	±0.002	＋0.01,－0.04
	3/32	0.094	2.4	±0.002	＋0.01,－0.04
		0.098	2.5	±0.002	＋0.01,－0.04
	1/8	0.125	3.2	±0.002	＋0.01,－0.07
	5/32	0.156	4.0	±0.002	＋0.01,－0.07
	3/16	0.188	4.8d	±0.002	＋0.01,－0.07
		0.197	5.0	±0.002	＋0.01,－0.07

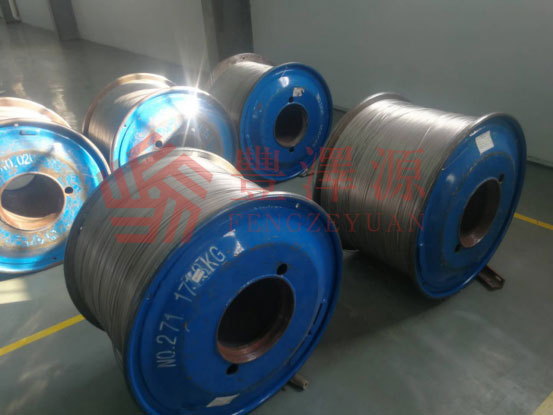

Spools		0.020	0.5d	＋0.001,－0.002	＋0.01,－0.03
		0.030	0.8	＋0.001,－0.002	＋0.01,－0.03
		0.035	0.9	＋0.001,－0.002	＋0.01,－0.04
		0.039	1.0	＋0.001,－0.002	＋0.01,－0.04
		0.045	－	＋0.001,－0.002	－
		0.047	1.2	＋0.001,－0.002	＋0.01,－0.04
	1/16	0.062	1.6	±0.002	＋0.01,－0.04

A Dimensions,tolerances,and packger forms (for round filler metal) other than those shown shall be as agreed by purchaser and supplier.
B Decimal inch are exact conversions with appropriate rounding.
C Length shall be 36 in ±1/4 in [915 mm ± 6 mm].
D Not shown as standard metric size in ISO 544.

ASTM B863 Standard
Chemical Composition Requirements for Titanium and Titanium Alloy Electrodes and Rods
Grades	Weight Percent,B,C,D,E
Grades	C	O	N	H	Fe	Al	V	Pd	Mo	Ni	Other Elements Max.each	Other Amount Max.total
Grade 1	0.08	0.18	0.03	0.015	0.20	—	—	—	—	—	0.1	0.4
Grade 2	0.08	0.25	0.03	0.015	0.30						0.1	0.4
Grade 3	0.08	0.35	0.05	0.015	0.30						0.1	0.4
Grade 4	0.08	0.40	0.05	0.015	0.50						0.1	0.4
Grade 5	0.08	0.20	0.05	0.015	0.40	5.5-6.75	3.5-4.5				0.1	0.4
Grade 7	0.08	0.25	0.03	0.015	0.30			0.12-0.25			0.1	0.4
Grade 9	0.08	0.15	0.03	0.015	0.25	2.5-3.5	2.0-3.0				0.1	0.4
Grade 12	0.08	0.25	0.03	0.015	0.30				0.2-0.4	0.6-0.9	0.1	0.4
Grade 23	0.08	0.13	0.03	0.0125	0.25	5.5-6.5	3.5-4.5				0.1	0.4
Any element intentionally added (O, Fe, N, and O) must be measured and reported.
